Description

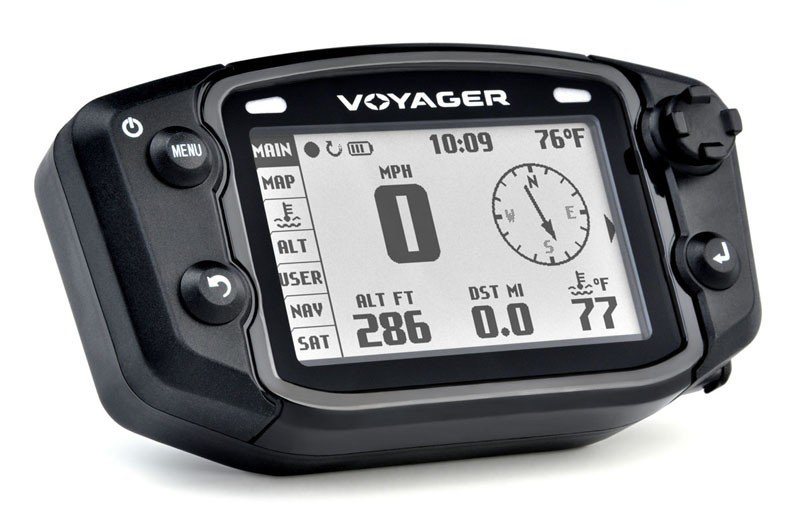

Voyager is the original Trail Tech Off-Road GPS, designed specifically to meet the needs of off-road riders. With Voyager you can download, record, and share maps while recording vital engine data. The 2.7 Inch TFT backlit display is ideal for viewing in any environment and gets easier to read in direct sunlight.
The map screen is monochrome, displaying maps in black and white. Plan routes on the web, then import to Voyager as gray routes ready to ride. As a new track is recording, a black line appears indicating where you have been.
Recorded tracks can be exported and combined to create entire riding areas. Need to edit trails? Voyager is supported by the free web app RIDELEADER.COM to help create, edit and save your epic rides. Download trails around your home or to plan your next vacation.
Voyager integrates with your vehicle using standard Trail Tech vehicle sensors, providing vital ride gauges such as engine temperature, RPM, battery voltage, speed/distance, and more.
At only 4.5 x 2.5 inches, Voyager is a great choice for many types of vehicles from adventure bikes to quads, UTVs and dirt bikes.
12V DC power required, make sure your vehicle has a battery.
Speed: 0-999 MPH
Distance: 0-250,000 mi
Altitude: 59,000 ft
Temperature: 0-260C
Accum. Run Time: 0-1,000,000 hr
GPS Sample Rate: 1-5 sec
External Power Input: 12V-60V DC
Internal Battery: 3.7V 900 mAh Li-Ion
Battery Life (Typical Use): 11 hours
Battery Life (100% Backlight): 6 hours
Battery Charge Time: 3-8 hours
Geodetic Datum: WGS84
GPS Chipset: MediaTek MT3329
Joystick: 5-Position High-Tactile
Wheel Sensor: Non-contact Magnet Sensor
Backlight: LED Group
Screen: 68.6mm Diagonal
Physical Dimensions: 113 x 62 x 28.2mm
Physical Weight: 172g
Max Waypoints: 300 waypoints
Max Track Points: 72,500 points
Max Route Points: 72,500 points
Max Tracks/Routes: 300 each
Kit Contents
8mm Fin Sensor: 7500-3008
Magnet Kit: 100-01
Wheel Sensor: 101-06
Mounting: 9000-1000
Power Lead: 9000-1011
Ignition Sensor Lead: 9000-1021
Micro SD Card Reader: 9000-MSDA
Micro SD Card: 9000-MSD2G
Protected by US Patent
Patent No. 8,708,205
Patent No. 8,848,356
Patent No. D635497
Patent No. D647434
